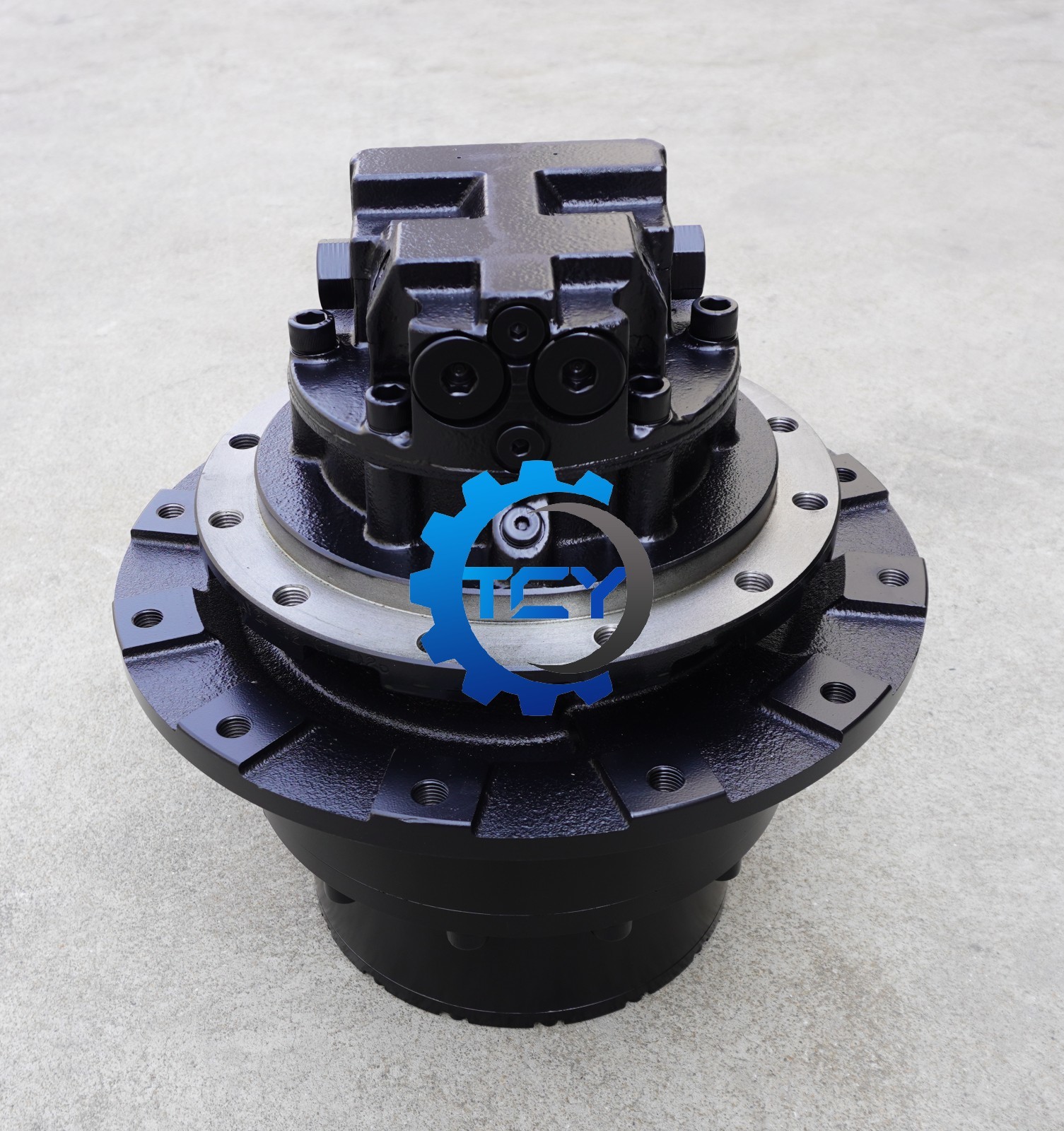

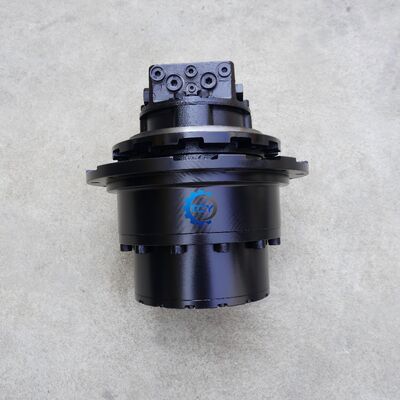

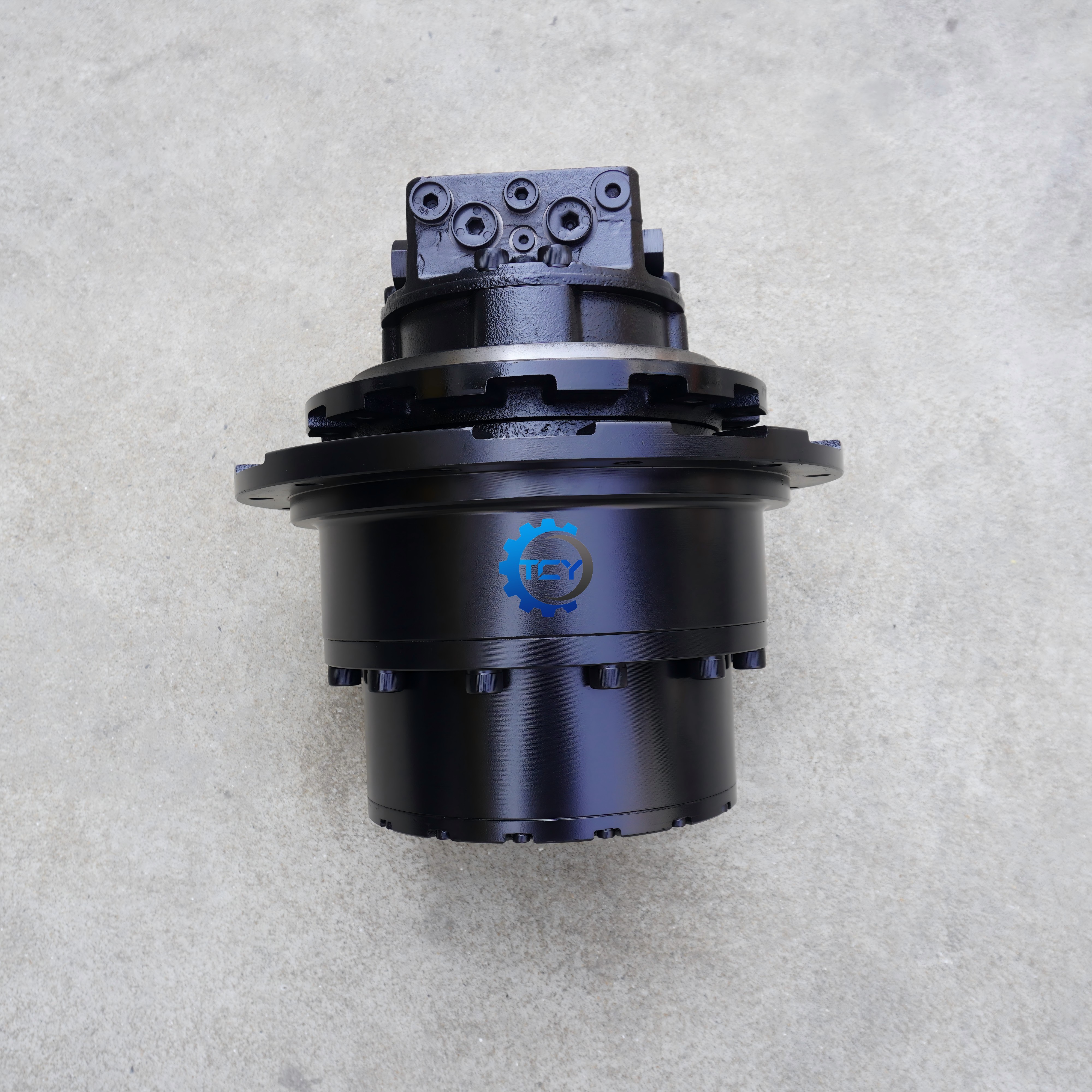

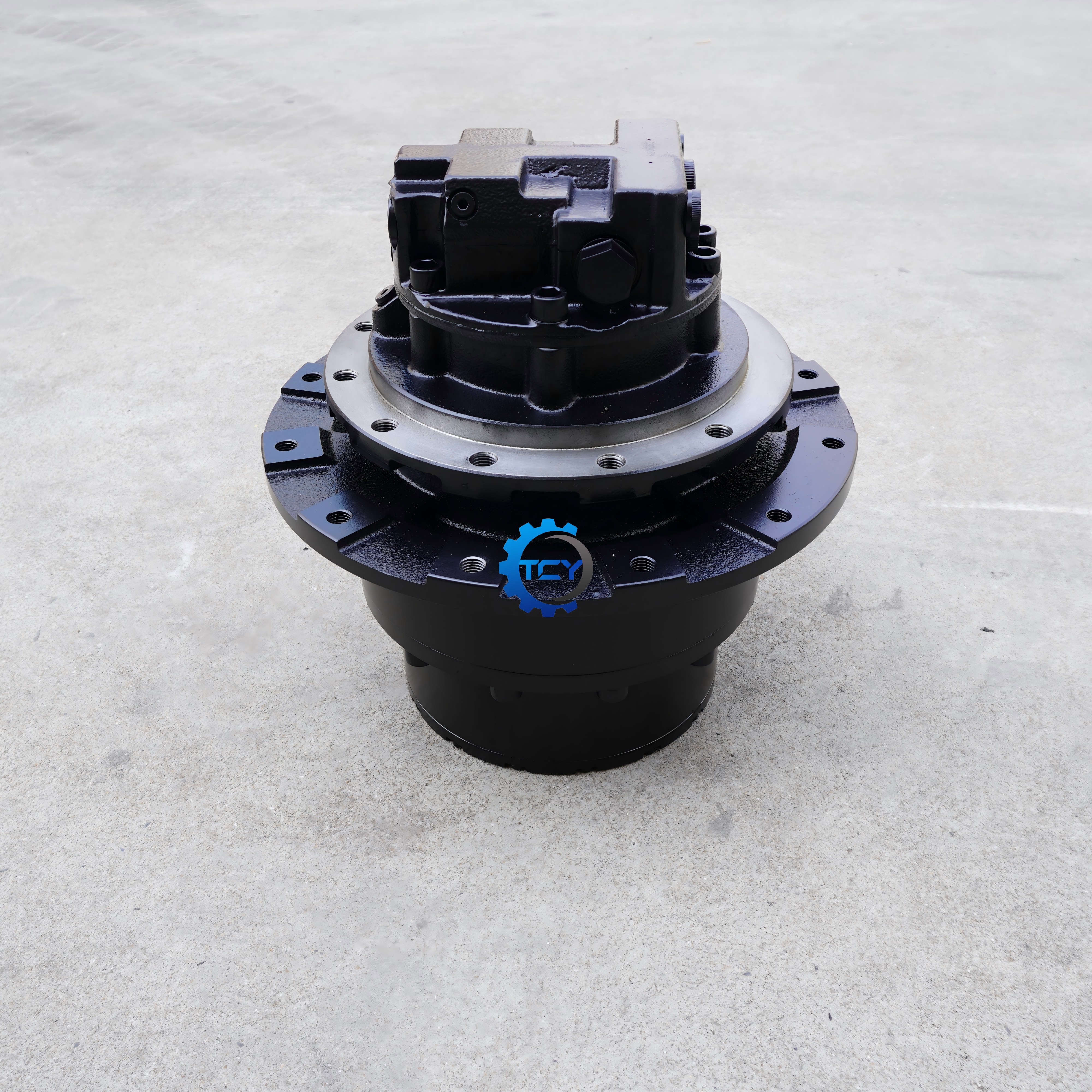

9224241 Travel Motor with gearbox FOR ZX75UR TRAVEL DEVICE HITACHI
| Numer części | 9224241 9224123 | Nazwa części | Zespół silnika jazdy |
|---|---|---|---|
| Złóż wniosek | ZX70 ZX75UR ZX75URT ZX75US-A ZX75UST ZX80LCK ZX8OSB-HCME ZX85US-HCME | Jakość | Wysoki |
| Stan | Nowy | Drewniane pudełko Rozmiar | 55*55*62 |
| waga | 130 kg | MOQ | 1 |
| Aplikacja | Napęd końcowy koparki |
9224241 9224123 TRAVEL MOTOR WITH GEARBOX FOR ZX75UR TRAVEL DEVICE HITACHI
• High torque & stable performance
Powerful output ensures smooth and efficient travel even under heavy load and tough working conditions.
• Premium material & long service life
High-strength gears and bearings with heat treatment, wear-resistant and durable for heavy-duty use.
• Advanced sealing system
Reliable multi-layer seals prevent oil leakage, dust and water intrusion, extending component life.
• Perfect OEM replacement
Direct interchangeable with original parts, easy installation, no modification needed.
• Low noise & low maintenance
Stable operation, reduced downtime, cost-effective for construction machinery.
• Wide compatibility
Suitable for various brands and models of excavators, reliable in mining, construction and earthmoving sites.
![]()
| Pos. | Part No | Qty | Parts name |
| 9224241 | [2] | TRAVEL DEVICE ASS'Y | |
| 0 | 9207861 | [1] | MOTOR;OIL |
| 0 | 9207891 | [1] | MOTOR;OIL |
| 2 | 4468674 | [2] | BRG.;BOLL |
| 3 | 4082631 | [1] | SEAL;GROUP |
| 4 | 4468675 | [1] | DRUM |
| 6 | J931635 | [12] | BOLT |
| 8 | 4468676 | [1] | GEAR;RING |
| 9 | M341440 | [12] | BOLT;SOCKET |
| 10 | 1024217 | [1] | SPROCKET |
| 12 | 4468678 | [1] | COVER |
| 13 | 4392320 | [1] | RING |
| 14 | 4245797 | [3] | PLUG |
| 15 | 4468679 | [1] | PIN |
| 16 | 4407802 | [1] | O-RING |
| 19 | 4400403 | [1] | CARRIER |
| 20 | 4600404 | [1] | SHAFT;PROP. |
| 21 | 4600405 | [3] | GEAR;PLANETARY |
| 22 | 4600407 | [3] | BRG.;NEEDLE |
| 23 | 4392322 | [6] | PLATE;THRUST |
| 24 | 4600406 | [3] | PIN |
| 25 | 4116305 | [3] | PIN;SPRING |
| 26 | 4600408 | [1] | PLATE;THRUST |
| 29 | 4468684 | [1] | CARRIER |
| 30 | 4468685 | [1] | GEAR;SUN |
| 31 | 4468686 | [3] | GEAR;PLANETARY |
| 32 | 4468687 | [3] | BRG.;NEEDLE |
| 33 | 4392326 | [6] | PLATE;THRUST |
| 34 | 4468688 | [3] | PIN |
| 35 | 4105691 | [3] | PIN;SPRING |
| 37 | 3080619 | [1] | NUT |
| 38 | J401032 | [1] | PIN;KNOCK |
| 40 | 3095427 | [1] | NAME-PLATE |
| 41 | M492564 | [2] | SCREW;DRIVE |
