24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO

  • 24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO
  • 24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO
  • 24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO
  • 24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO
  • 24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO
  • 24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO
Miejsce pochodzenia Wykonane w Chinach
Nazwa handlowa TCY
Numer modelu SK290LC SK290LC-6E SK330LC-6E
Minimalne zamówienie 1
Szczegóły pakowania Drewniana obudowa
Czas dostawy 2-3/Negocjuj
Zasady płatności T/T, Alipay, WeChat... itp., Western Union, MoneyGram, D/P

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Nazwa produktu Silnik Część nr. 24100J16661F4 LC15V00003F1 LC15V00003F2R LC15V00003F2C
Model SK290LC SK290LC-6E SK330LC-6E Waga 300 kg
Rozmiar pudełka 55*55*68 Stan Nowy
Nazwa handlowa TCY Złóż wniosek o Koparka Kobelco
Zostaw wiadomość
opis produktu

24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO​

24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO 0
Model: SK290LC SK290LC-6E SK330LC-6E Part name:Swing Device
Part NO.:24100J16661F4 LC15V00003F1 LC15V00003F2R LC15V00003F2C ect~ MOQ:1PCS
Packing:Wooden case Place of Origin:China
Aftersale service provided:Online support  Apply To:Sany Excavator
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online

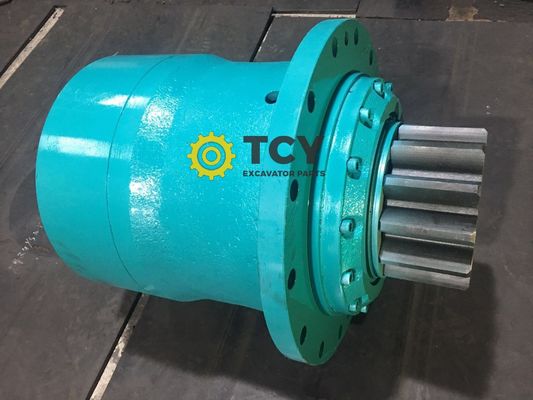

Product Show

24100J16661F4 SWING REDUCTION ASSEMBLY LC15V00003F1 LC15V00003F2R LC15V00003F2C FOR SK290LC SK290LC-6E SK330LC-6E KOBELCO 1

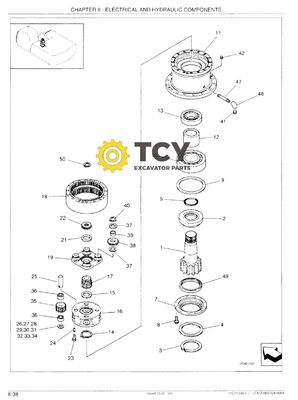

Pos. Part No Qty Parts name Comments
  24100J16661F4 [1] HYDRAULIC MOTOR KOB ASSEMBLY,SWING
1. 2410J549 [1] FINGERASSY KOB SHAFT,PINION
2. 2418P27419 [1] SLEEVE KOB
3. 2418R597D25 [1] LOCKING RING KOB SNAP RING
4. 2418T24206 [1] PLATE KOB
5. ZD11G14000 [1] O-RING,13940mm ID×14560mm OD×

3.10mm		 KOB ID 139.4±1.12×OD 145mm
7. 2418N3633 [1] RETAINER KOB
8. ZS23C12040 [14] SCREW,Hex Socket Head,M12×40mm KOB M12x1.75x40mm
  2418T22950
10. R25P0047D12 [1] BEARING KOB SPHERICAL BEARING
11. 2414J2542 [1] BEARING ASSY KOB HOUSING
12. 2418T22951 [1] SPACER KOB
13. 25Z494D16 [1] BEARING KOB
14. ZR16X12000 [1] SNAP RING KOB Retaining-ID 113×OD 120x Th 4.0mm
15 2418T22971 [1] SPACER KOB
16 2413J382 [1] DIFF SPIDER KOB
17. 2401P1387 [1] SUN GEAR KOB
18 2401J152 [1] RING GEAR KOB INTERNAL
19 2413N491F1 [1] SPIDER KOBASSEMBLY
21 2418T22970 [1] SPACER KOB
22 2401P1388 [1] SUN GEAR KOB
23 ZS13C10025 [8] CAPSCREW KOB SCREW M10x1.50x25mm Superseded by part number

ZS18C10025
24. 2418T22949 [4] LOCKING PLATE KOB
25. 2410T493 [4] SHAFT KOB
26 2420T7753D1 [1] SHIM KOB(1.0)
27 2420T7753D2 [1] SHIM KOB(1.1)
28 2420T7753D3
29 2420T7753D4
30 2420T7753D5
31 2420T7753D6
32 2420T7753D7
33 2420T7753D8
34 2420T7753D9 [1] SHIM KOB(1.8)
35 2401P1393 [4] PINION KOB PLANETARY
36. 2425R221 [8] BEARING ASSY KOB
  2418T22960
38. 2401P1394 [4] PINION KOB PLANETARY
39 2425R218 [4] NEEDLE BEARING KOB
40 ZR16X06500
41. ZE82T12000 [1] PLUG KOB 3/4"PT
42 ZS83C20020 [2] SCREW KOB Set--M20×2.50x20mm
47 2420T6698D1 [1] PIPE KOB
48. ZG31U12000 [1] ELBOW KOB
49 2418Z1448 [1] SEAL KOB OIL SEAL
50 ZR16X04500 [1] RING KOB Retaining--ID 45×OD 58xTh 1.8mm
51 24100J13528R100 [1] REPAIR KIT KOB Includes 26-34
